Quick Start - Try the Asset Tokenization Studio

Quick start guide to run the Asset Tokenization Studio web application.

Note: All examples in this guide use Hedera Testnet. Replace endpoints, keys, and network names with your target network as needed.

Prerequisites​

  • Node.js: v20.19.4 or newer
  • npm: v10.9.0 or newer
  • Hedera Account: Testnet or mainnet account with HBAR
  • Hedera Wallet:
    • MetaMask (connects directly), or
    • HashPack, Blade, or other wallets (connect via WalletConnect)

Installation​

Clone the Repository​

git clone https://github.com/hashgraph/asset-tokenization-studio.git
cd asset-tokenization-studio

ATS Configuration​

Create Environment File​

cp apps/ats/web/.env.example apps/ats/web/.env

Configure Environment Variables (Optional)​

Edit apps/ats/web/.env:

WalletConnect Configuration (Optional)​

Required only if using HashPack, Blade, or other non-MetaMask wallets. You need a Reown project ID (https://reown.com/):

# Get your project ID from https://cloud.walletconnect.com
REACT_APP_PROJECT_ID=your_project_id_here

Note: MetaMask connects directly and does not require WalletConnect configuration.

Build ATS​

Run this single command from the monorepo root to install dependencies and build everything:

npm run ats:setup

This will automatically install dependencies, build contracts, and build the SDK.

Running the Application​

npm run ats:web:start

The application will be available at http://localhost:4173/

Application Interface​

Once running, you'll see the ATS web application:

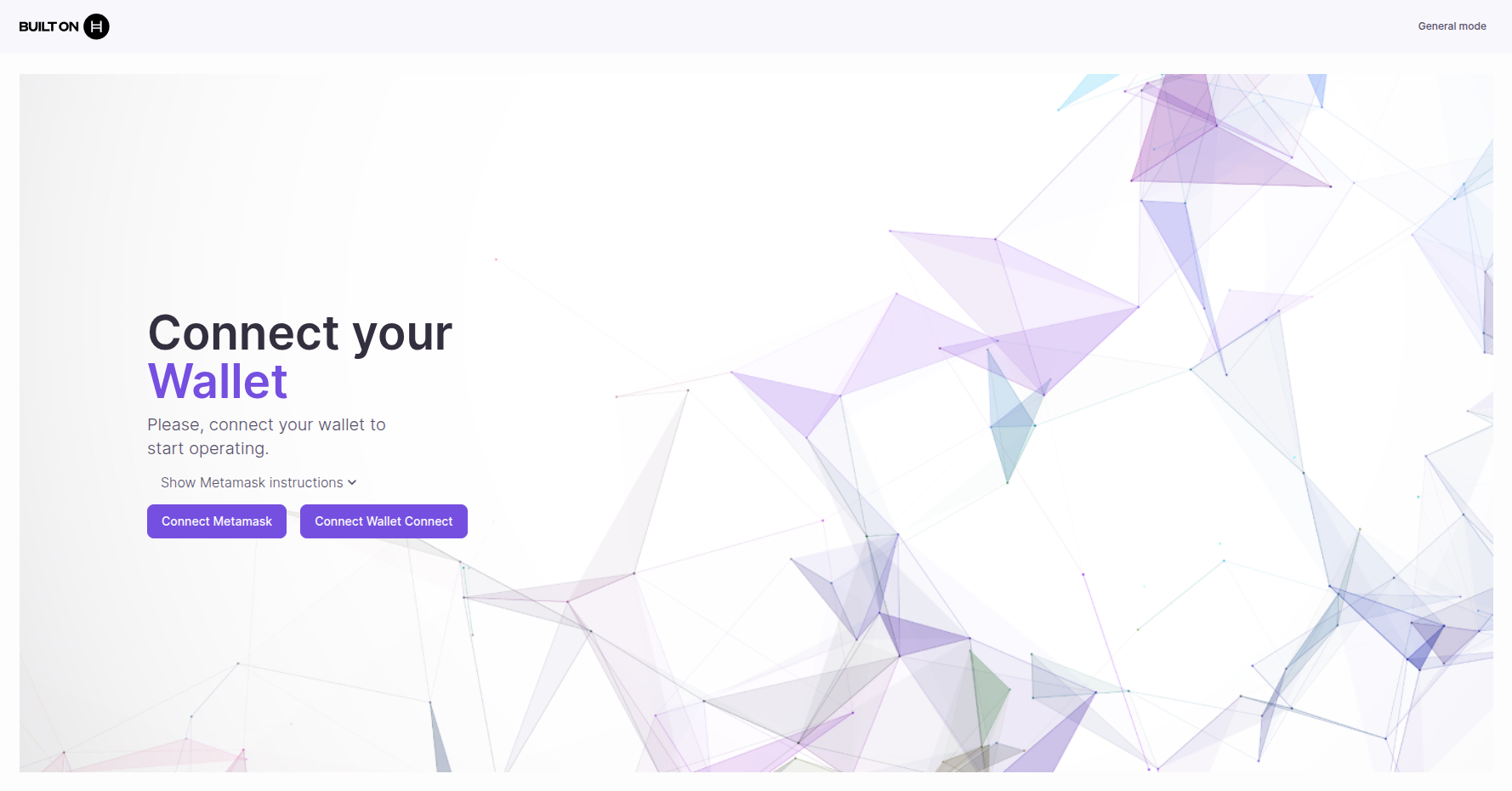

ATS Web Application Home

First Steps​

1. Connect Your Wallet​

  • Click "Connect Wallet" in the top right
  • Select your preferred wallet:
    • MetaMask: Click "Connect with MetaMask" (direct connection)
    • Other wallets: Select HashPack, Blade, or other WalletConnect-compatible wallets
  • Approve the connection request

2. Select Your View: Admin or Holder​

ATS provides two operating modes:

  • Admin View (green): For token issuers and administrators to manage tokens, perform corporate actions, and configure settings
  • Holder View (blue): For token holders to view their balances and transfer tokens

You can switch between views from the dashboard by clicking the view selector.

3. Create a Security Token​

  • Navigate to "Create Token"
  • Choose token type: Equity or Bond

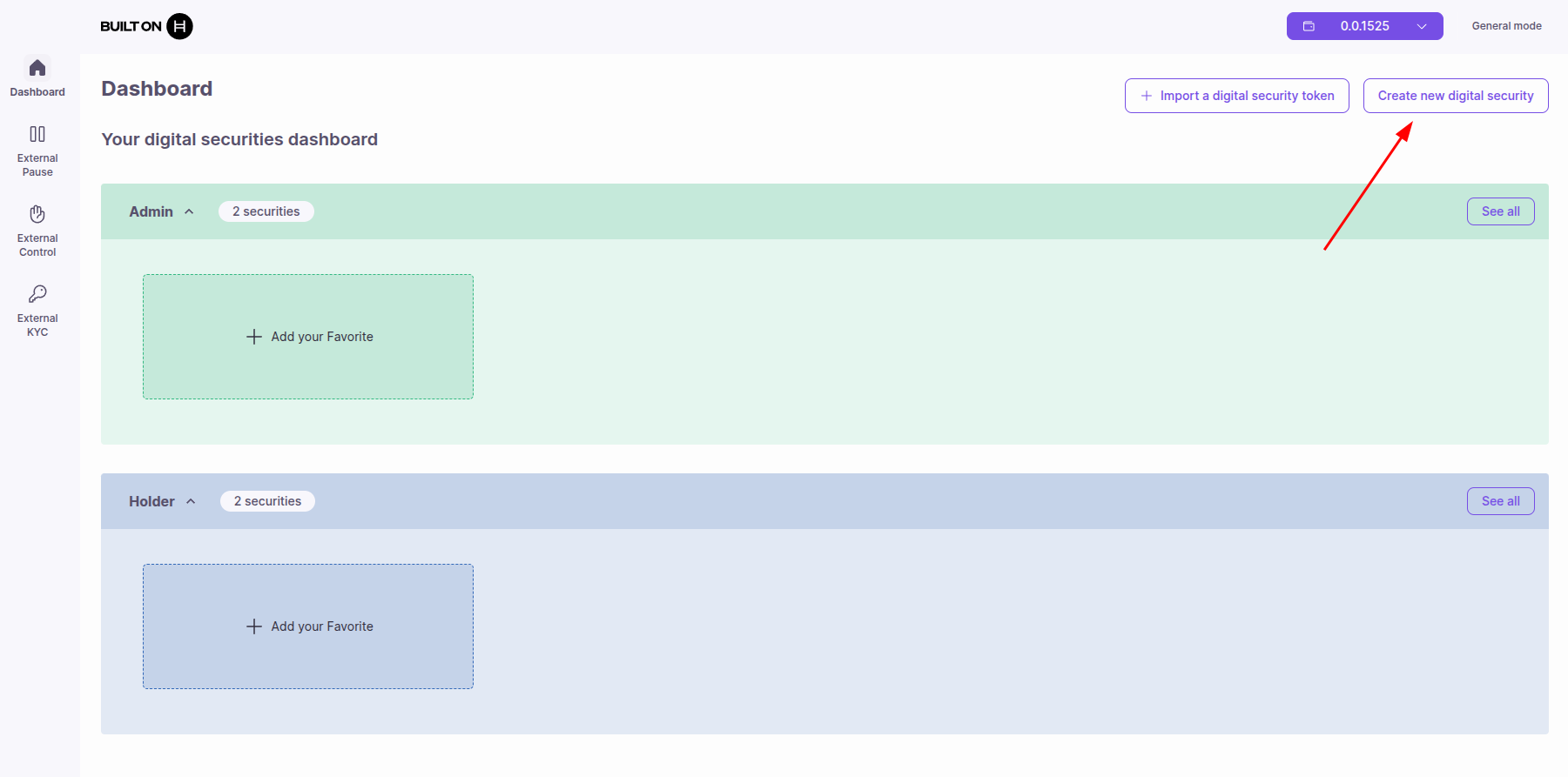

Create Security Token

  • Fill in token details (name, symbol, supply)
  • Configure compliance settings (KYC, transfer restrictions)
  • Deploy the token

4. Manage Your Tokens​

Once you've created tokens, you can manage them from the dashboard:

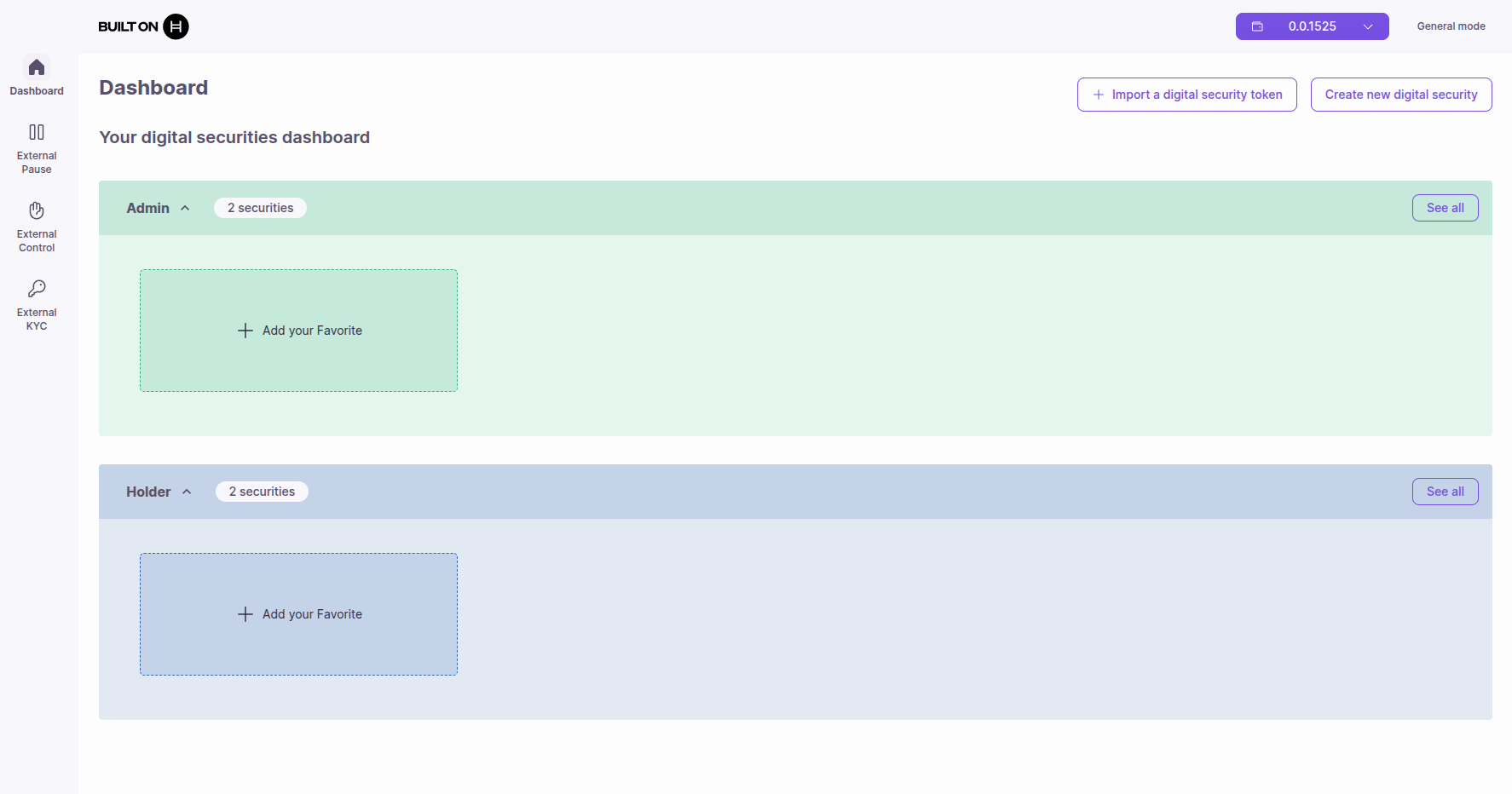

ATS Dashboard

Selecting a Security Token​

To perform operations on a security token, you must first select it:

  • From "See All" button: Click "See All" to view all your tokens, then select the one you want to work with
  • From Favorites panel: If you've marked a token as favorite, you can quickly select it from the favorites panel on the dashboard

Available Operations​

Once security is selected, you can:

  • View all tokens
  • Perform operations
  • Manage token holders and permissions

Available operations appear in tabs. The tabs you see depend on your assigned role:

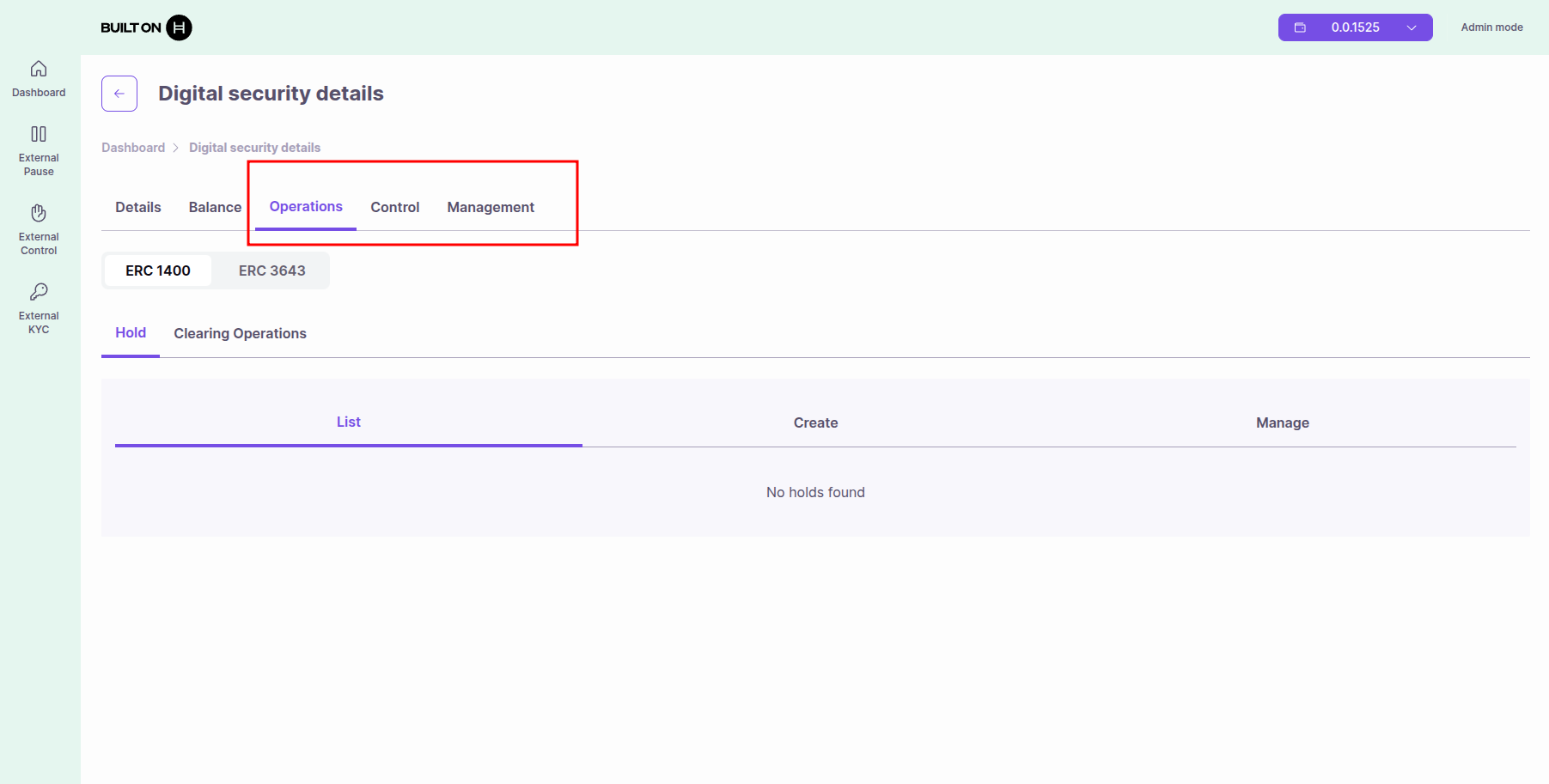

Available Operations Tabs

Troubleshooting​

Port Already in Use​

# Kill process on port 4173
lsof -ti:4173 | xargs kill -9

# Or change port in vite.config.ts

Build Errors​

# Clean and rebuild
npm run ats:clean
npm run ats:build

Wallet Connection Issues​

  • Ensure your wallet extension is installed and unlocked
  • Check that you're connected to the correct network (testnet/mainnet)
  • MetaMask: Connects directly without WalletConnect
  • HashPack/Blade/Other wallets: Verify your WalletConnect project ID is configured in .env

MetaMask: "Selected Account is not a Hedera account"​

If you see this error when connecting MetaMask, you need to add the Hedera network to MetaMask:

For Hedera Testnet:

  1. Open MetaMask
  2. Click on the network dropdown (top left)
  3. Click "Add Network" → "Add a network manually"
  4. Fill in the following details:
    • Network Name: Hedera Testnet
    • RPC URL: https://testnet.hashio.io/api
    • Chain ID: 296
    • Currency Symbol: HBAR
    • Block Explorer URL: https://hashscan.io/testnet
  5. Click "Save"
  6. Switch to the Hedera Testnet network
  7. Try connecting again

For Hedera Mainnet:

  1. Use the same steps as above with these details:
    • Network Name: Hedera Mainnet
    • RPC URL: https://mainnet.hashio.io/api
    • Chain ID: 295
    • Currency Symbol: HBAR
    • Block Explorer URL: https://hashscan.io/mainnet

Note: This error can also occur if the mirror node is not correctly configured in your .env file. Verify the REACT_APP_MIRROR_NODE environment variable is set correctly.

Contract Not Found​

  • Verify contract IDs in .env are correct
  • Ensure contracts are deployed to the network you're using
  • Check that the Business Logic Resolver and Factory are properly configured
